TELEHANDLERS
From tight urban sites to high-reach construction, our JCB Loadall telehandlers deliver the power, precision and safety you need. Choose from compact 12.3 m machines through to our 18 m high-reach option, all with proven JCB durability, three steering modes and load monitoring as standard.

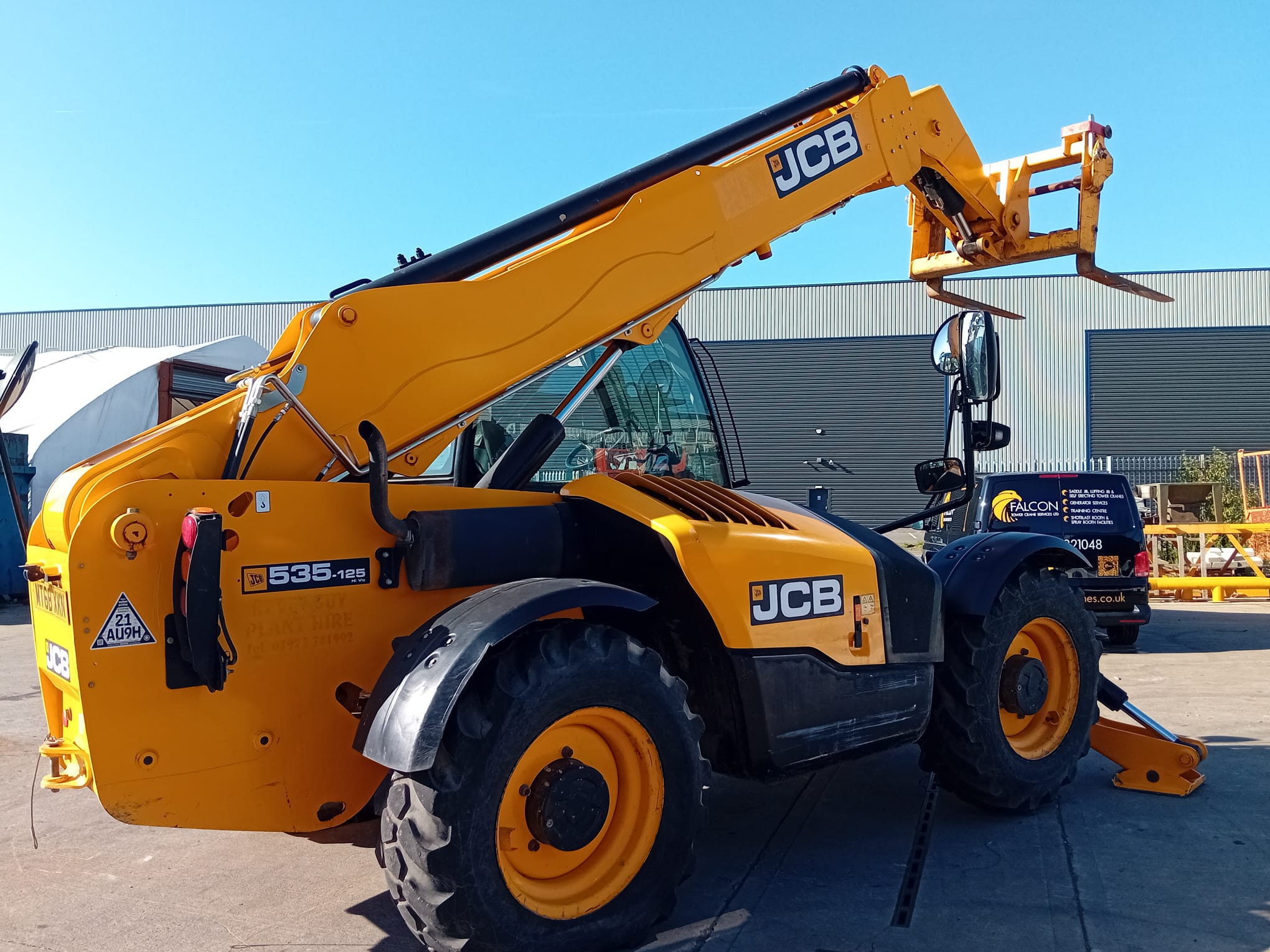

JCB LOADALL | 535-125
The perfect all-rounder for general construction and materials handling. It lifts up to 3,500 kg and reaches 12.3 m with stabilisers deployed, with 8.0 m maximum forward reach.
Why pick it
- Big capacity in a compact footprint (outside turn radius just 4.0 m).
- Powerful 4.4 L JCB engine options up to 93 kW (125 hp).
- ±9° chassis sway for quick pick-and-place on uneven ground.
JCB LOADALL | 535-140
Need extra height without moving into the 18 m class? The 535-140 keeps the 3,500 kg headline capacity and stretches to 13.8 m with stabilisers. Forward reach runs to 9.52 m.
Why pick it
- Full 3.5 t to max height on stabilisers, great for placing heavy pallets at floor level on multi-storeys.
- 4.4 L engines up to 90.5 kW (121 hp).
- Automatic steer-mode alignment for faster switching between front/all-wheel/crab.

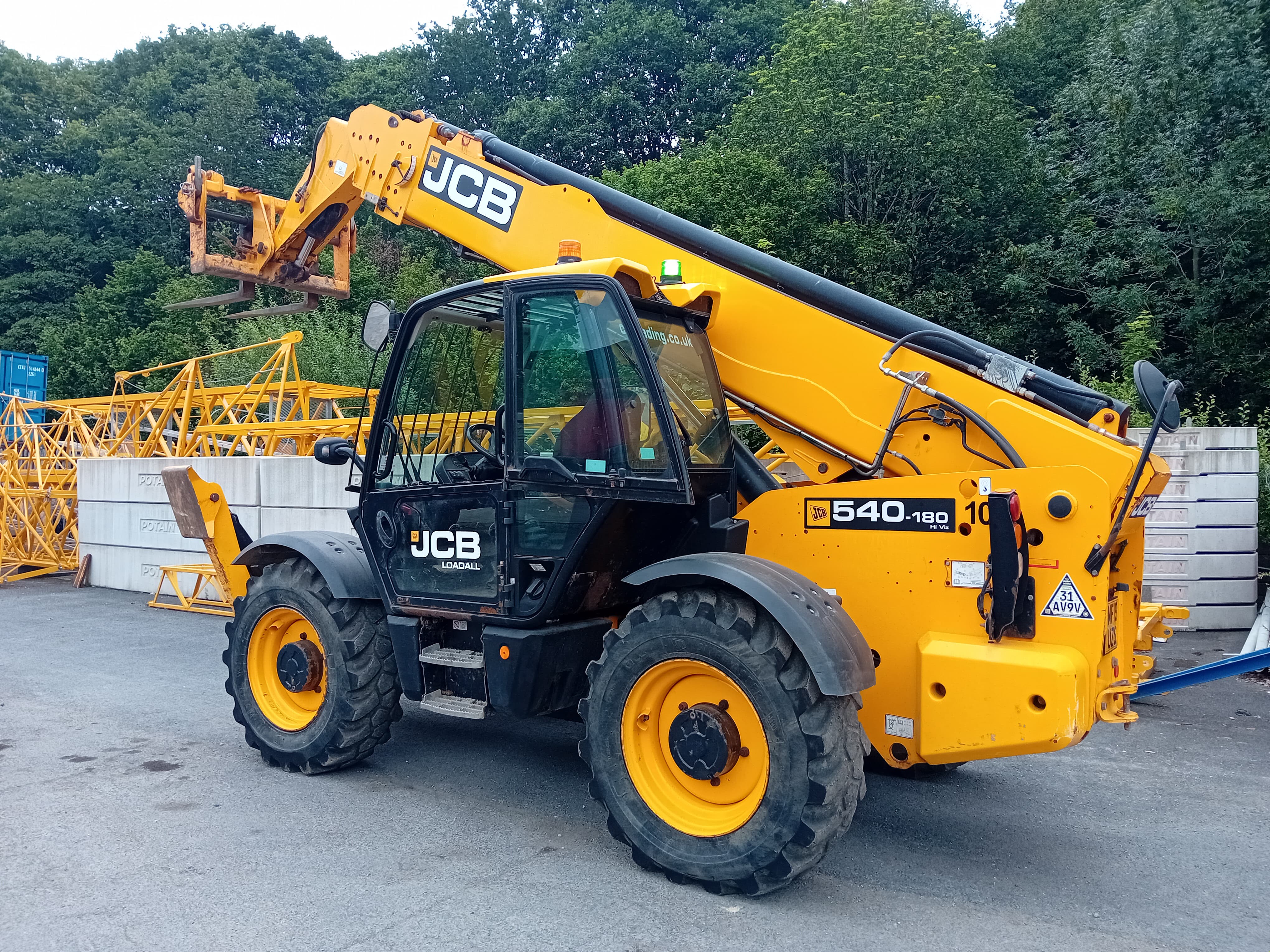

JCB LOADALL | 540-180
When you need serious height and extra lift capacity, the 540-180 delivers. It handles 4,000kg and reaches 17.51m (with stabilisers), with a maximum forward reach of 13.25m, ideal for cladding, roofing, and high-rise materials placement .
Why pick it
- Increased capacity of 4t vs 3.5t on lower models.
- Excellent reach-to-footprint ratio—tight turning circle (4.05 m) with ±10° chassis sway for safe, precise placement .
- Powerful JCB EcoMAX engines (up to 93.2 kW / 125 hp) and 4F/4R powershift transmission .
- Comes with stabilisers and boom-end damping for smooth, confident operation at height.
- Ideal for multi-storey developments or anywhere reach and lift planning matter most.
